Description

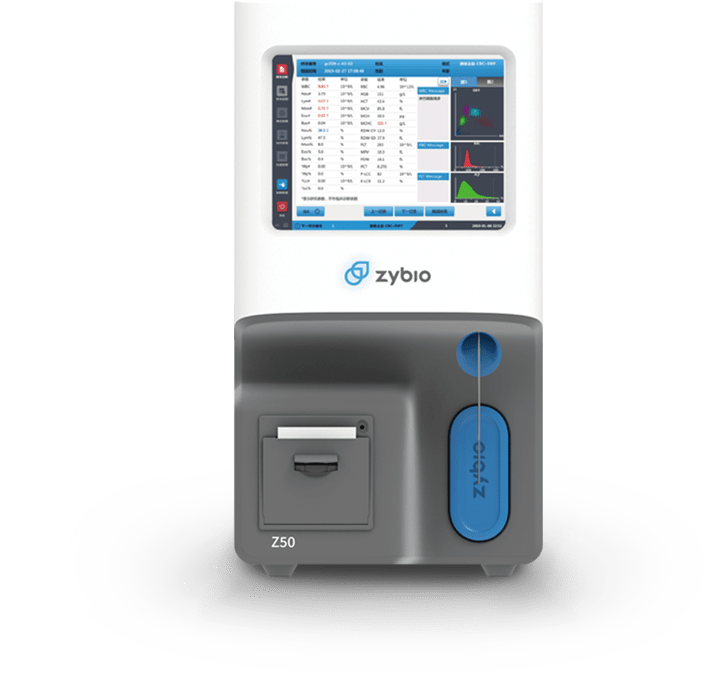

Hematology Analyzer

An evolved 5-diff hematology analyzer enable all possibilities in the small laboratories.

Advantages

Tri-angle laser scatter + advanced flow cytometry + chemical dye, create the possibility for better 5-diff WBC differentiation even on samples with high Eosinophil.

Dedicate channel and optical method for Basophil measurement, have a better performance on basophil counting than traditional impedance method.

Two lyses located-in the analyzer, compact design stem from highly integrated electronic boards, simplified liquid path system to fit in small labs, clinics, etc.

Multiple smart flags to indicate abnormal blood cell differentiation and morphology.

Technical Specification

29 parameters + 5 scattergram + 3 histograms

Principle
Flow cytometry and tri-angle laser scattering for WBC counting and 5-diff differentiation
Impedance method for RBC and PLT
Cyanide free reagent for HGB measurement

Sample Type
Venous blood, capillary blood and pre-diluted blood

Throughput
60 Samples/h

Reagent
Diluent, 2 Lyses, Probe cleanser
